Wireless TallyLight for cameras
Receives switcher PGM/PVW wirelessly and shows it on receiver LEDs in real time. Supports ATEM, OBS, vMix, OSEE — up to 20 units.
Switcher via IP,
receiver via RF (LoRa)
No extra software. Just enter the switcher IP in the web UI.
Connect to the switcher
Connect the master to the switcher network over Wi-Fi or Ethernet. Enter the switcher IP in the web UI to receive PGM/PVW in real time.
Show Tally on the receiver
Mount the receiver on the camera and it picks up the Tally signal over RF (LoRa) to light the LED. Red = PGM (on air), green = PVW (next).
Three key features
LoRa long-range wireless, dual-switcher connection, web UI management.
LoRa long-range wireless
433/868MHz LoRa. Longer range and lower power than Wi-Fi, robust against interference, and easy on batteries.
Dual-switcher connection
Connect two of ATEM, OBS, vMix, OSEE at once. Map each switcher's PGM/PVW to cameras 1–20.

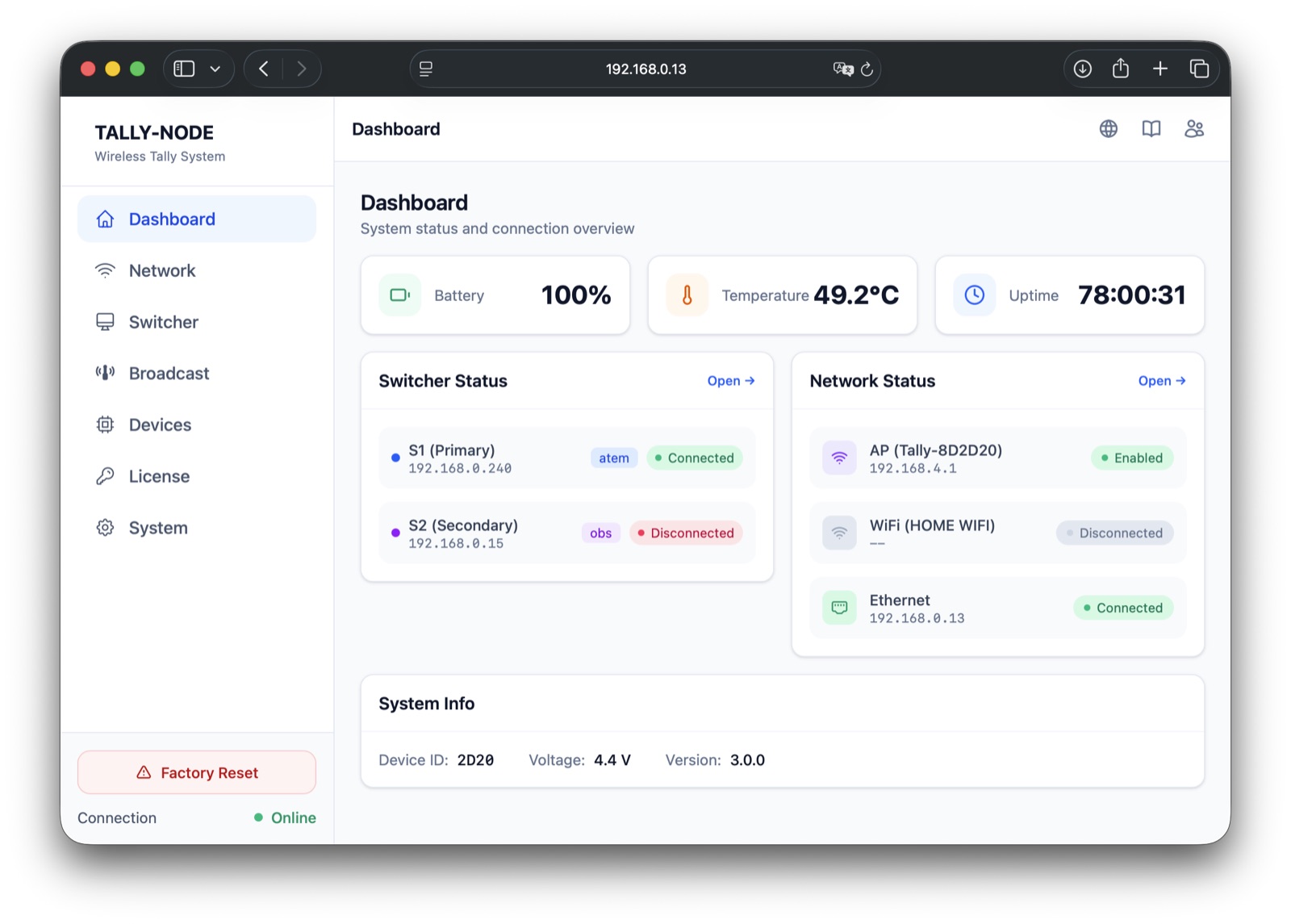

Web UI management
Manage up to 20 receivers on one screen in your browser. Monitor LED color, brightness, and signal strength (RSSI) in real time.
Hardware
Master
An ESP32-S3 with LoRa connects to the switcher over IP and broadcasts the Tally signal wirelessly. Wired LAN and Wi-Fi work simultaneously.
- MCU
- ESP32-S3
- Wireless
- LoRa 868/433MHz · 22dBm
- WiFi
- 802.11 b/g/n 2.4GHz
- Ethernet
- W5500 10/100 Mbps
- Display
- SSD1306 OLED 128×64
- Power
- 18650 battery · USB-C charging
- Mount
- 1/4" thread
- Switcher
- ATEM · OBS · vMix · OSEE
- Receiver
- Up to 20 managed
Get started with TALLY-NODE
From setup to operation, it's all in the docs. Reach out anytime if you have questions.
